Features
- Towing of the aircraft with only one towing vehicle if pulley is in use
- Designed for rapid deployment and compatibility with common aircraft tow points.
KUNZ AETS - Aircraft Emergency Towing System
Key Tasks

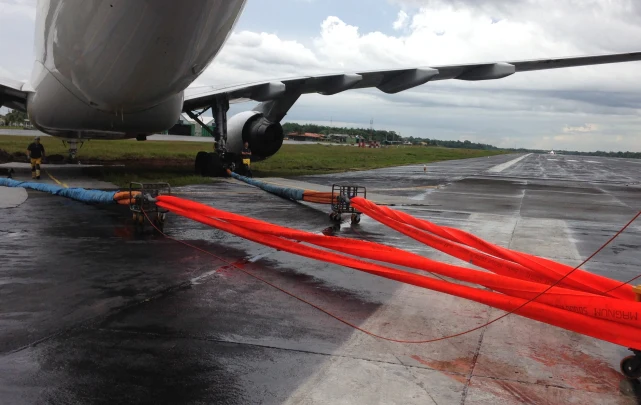

- Emergency towing of disabled aircraft from runways and taxiways
- De-bogging operations to recover aircraft from soft ground
- Monitoring and limiting towing loads to protect landing gear structure
- Single-vehicle towing possible when using a pulley configuration
Overview

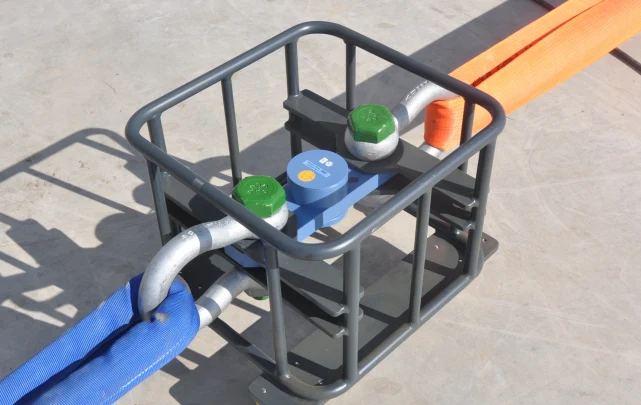

The KUNZ AETS Aircraft Emergency Towing System is a complete, purpose-built solution for the emergency towing and recovery of disabled aircraft. Each set consists of load cells, round slings, shackles and digital indication equipment, all mounted in a robust aluminium case for rapid deployment.
The integrated load cells enable the permissible towing load to be set precisely, triggering a visual and acoustic alarm if the limit is exceeded. Peak load values are stored in memory for post-operation review and documentation. When using a pulley configuration, towing can be performed with a single towing vehicle.
Sets are available for 5, 20, 30, 55 and 80 tonnes capacity per landing gear, covering all aircraft from regional jets to the Airbus A380.
Main Benefits
- Complete towing set in one aluminium case: load cells, slings, shackles and indicators
- Adjustable load limit with visual and acoustic alarm – protects aircraft structure
- Single-vehicle towing possible with pulley configuration
- Peak load memory for post-operation documentation
- Compatible with all common aircraft tow points – rapid deployment design
- Available in 5 capacities: 5, 20, 30, 55 and 80 tonnes per landing gear
- Covers all aircraft from regional jets to the Airbus A380
- Compact aluminium case for easy storage and transport
Fast, Safe and Controlled Emergency Aircraft Towing

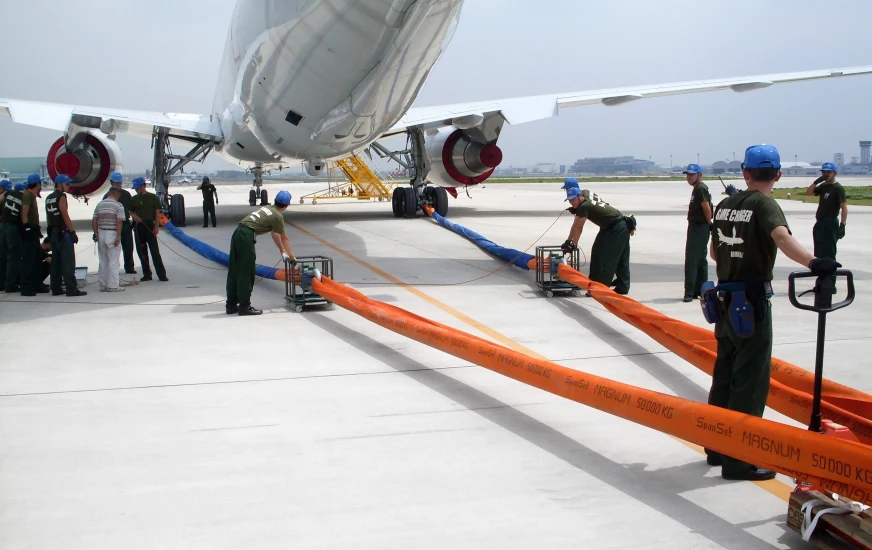

When a disabled aircraft is blocking a runway, every minute of closure has measurable operational and financial consequences. The KUNZ AETS enables the fastest possible response – a complete, ready-to-deploy towing system that arrives in a single aluminium case and can be connected to the aircraft quickly by a trained recovery team.
The load cell system ensures that towing forces stay within the limits prescribed by the aircraft manufacturer's recovery manual at all times, protecting the landing gear from overload damage and avoiding the risk of secondary structural damage during towing.
Every Capacity. Every Aircraft.
The KUNZ AETS is available in six capacity configurations, covering every class of civil and military aircraft:
All sets are designed for rapid deployment and compatibility with common aircraft tow points, and are trusted by airports, airlines and military operators on every continent.
KUNZ Pulley:
When a pulley is used in conjunction with the AETS, towing of the aircraft can be performed with only a single towing vehicle – reducing the resources required on-site and enabling recovery in confined areas where a second vehicle cannot easily be positioned.
Product Information
Part Numbers
KUNZ AETS-5t - Aircraft Emergency Towing Set: 413.6500-1
KUNZ AETS-20t - Aircraft Emergency Towing Set: 413.6820-1
KUNZ AETS-55t - Aircraft Emergency Towing Set: 413.6840-1
KUNZ AETS-55t-A380 - Aircraft Emergency Towing Set: 413.6850-1
